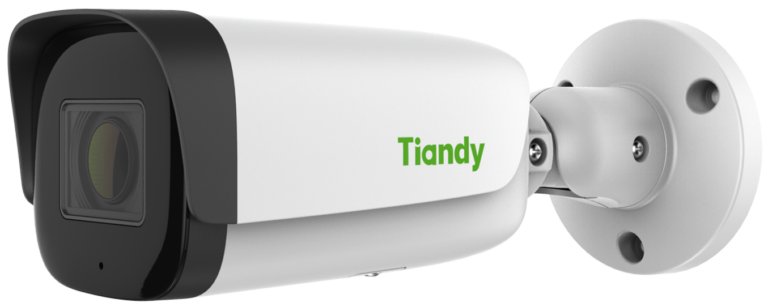

Tiandy 4MP LPR
- Suitable for parking lot entrance and exit
- Built-in deep learning LPR algorithm Support license plate recognition 1/1.8”CMOS
- Suitable for parking lot entrance and exit
- Built-in deep learning LPR algorithm
- Support license plate recognition
- 1/1.8”CMOS
- Up to 2560×1440@30fps
- 2.8-12mm
- 120dB WDR
- S+265/H.265/H.264/M-JPEG
- Built-in Microsupport max 512G Micro SD Card,up to 512 GB
- LPR distance 2-6m
- Operating Conditions -35℃~65℃, 0~95% RH
- Description
Description
| Camera | |
| Image Sensor | 1/1.8″CMOS |
| Min. Illumination | Color:0.0004Lux@(F1.3,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s-1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| WDR | 120dB |
| S/N | >43dB |
| Angle Adjustment | 0-360°;0-90°;0-360° |
| Lens | |
| Lens Type | Motorized |
| Focal Length | 2.8-12mm |
| Lens Mount | Ф16 |
| Aperture Range | F1.3,DC-iris |
| Field of View | 106.9°-48.7°(H);57.2°-27.4°(V);121.2°-55.9°(D) |
| DORI Distance | Detect:37m-160m Observe:14.5m-63.5m Recognize:7.5m-32m Identify:3.5m-16m |
| Illuminator | |
| IR LEDs | 4 |
| IR Distance | 30m |
| Wavelength | 850nm |
| White LEDs | 3 |
| Whitelight Distance | 15m |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG |
| Video Bit Rate | 32k-16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Sampling Rate | 8kHz/32kHz/48kHz |
| Image | |
| Max. Resolution | 2560×1440@30fps |
| Main Stream | PAL:25fps(2560×1440,2304×1296,1920×1080,1280×720) NTSC:30fps(2560×1440,2304×1296,1920×1080,1280×720) |
| Sub Stream | PAL:25fps(704×576,704×288,352×288,640×360) NTSC:30fps(704×480,704×240,352×240,640×360) |
| Third Stream | PAL:25fps(1920×1080,1280×720,704X576,704X288,352X288) NTSC:30fps(1920×1080,1280×720,704X480,704X240,352X240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance |
| ROI | 8 regions |
| Corridor mode | N/A |
| EIS | N/A |
| OSD | 5regions;16*16/32*32/48*48/64*64/96*96 |
| Picture Overlay | 1 region |
| Privacy Mask | 4 regions |
| Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection;Mask Alarm;Voltage Alarm;Disk Full;Disk R/W Error;IP Address Conflict;MAC Address Conflict;FTP Server Exception ;Event Input, Event Output |
| Linkage Method | send email;trigger sound;trigger warmlight;trigger recording;trigger capture;notify surveillance center |
| Video Analytics | Human/Vehicle Classification;Tripwire;Double Tripwire;Perimeter;Video Abnormal;Audio Abnormal |
| Rules of behavior analyse in 1 scene | 8 |
| Early Warning(EW) | N/A |
| Auto-Tracking | N/A |
| Face Mode | N/A |
| Face Detection Performance | N/A |
| Network | |
| ANR | ANR |
| Protocols | HTTP;HTTPS;TCP/IP;UDP;UPnP;ICMP;IGMP;SNMP;DHCP;DNS;DDNS;Easy DDNS;NTP;SMTP;SSL;802.1X;QoS;IPv4;IPv6;PPPOE;SSH;Unicast;Multicast;RTCP;ARP;SRTP;RTSP;FTP;SFTP;NAS |
| System Compatibility | onvif Profile S/T/G/M;CGI;MIL STONE;RTMP |
| Remote Connection | ≤2 |
| Client | Easy7 Smart Client |
| Moblie Client | EasyLive Plus |
| Web | IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+ |
| Interface | |
| Communication Interface | 1 RJ45 10M/ 100M self adaptive Ethernet port |
| Audio I/O | 1channel in;1channel out |
| Alarm I/O | 2channel in,3mA,3.3VDC;1channel out,1A,24VDC |
| Built-In Mic | Yes |
| Built-In Speaker | Yes |
| Reset Button | Yes |
| On-board storage | Built-in Micro SD card slot, up to 512 GB |
| Additional interfaces | 1 channel RS-485 |
| General | |
| Web Client Language | 8languages Simple Chinese/English/Spanish/Italian/French/Polish/Vietnamese/German |
| Operating Temperature | -35℃-65℃ |
| Operating Humidity | 0-95% |
| Storage Temperature | -35℃-65℃ |
| Storage Humidity | 0-95%(non-condensing) |
| Power Supply | DC12V±25%,MAX 14W;POE 802.3at,MAX 15.5W |
| Protection | Surge protection 2000V;Lightning proof 6000V;IP67 |
| Boundary Dimensions | 327(L)114(W)105(H)mm |
| Package Dimensions | 360(L)150(W)170(H)mm |
| GrossWeight | 1.83kg |
| NetWeight | 1.48kg |
