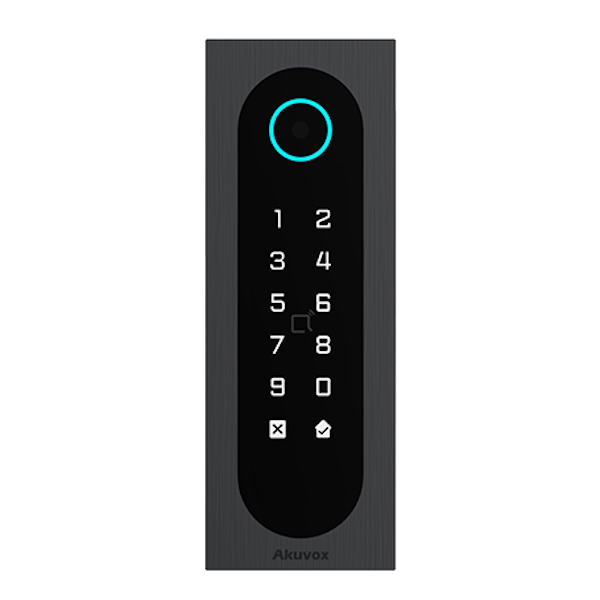

Akuvox RFID Access Control Terminal
A01
Smart, Compact, and Stylish Access Control Terminal
A01 is an IP-based access control terminal that combines door controller and card reader in one device. It supports RFID cards and mobile access via NFC, offering users flexibility in credential options.
- Description
- Downloads
Description
-
Physical & Power
- Front panel: Toughened Glass
- Frame: Aluminum Alloy
- RFID card reader: 13.56MHz & 125kHz
- Relay out: 1
- Inputs: 2
- Wiegand: Support
- Speaker: 8Ω / 0.5W
- Tamper proof alarm: Support
- Ethernet port: RJ45, 10/100Mbps adaptive
- 802.3af Power-over-Ethernet
- 12V DC connector (if not using PoE)
- Power output: 12V 600mA
- IP Level: IP65
- Installation: Flush-mounted or Wall-mounted
- Dimension: 86 x 86 x 33 (mm)
- Working Humidity: 10~90%，no condensing
- Working Temperature: -20°C ~ +55°C
- Storage Temperature: -30°C ~ +70°C
-
Capacity
- User Capacity: 20,000
- Card Capacity: 20,000
- Event Log: 100,000
-
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs
-
Networking
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
-
Door Entry Feature
- Access schedule export/import
- Access level management
- Supports switch to reader mode
- Door access logs query and export
- Flexible scheduling and attendance management
